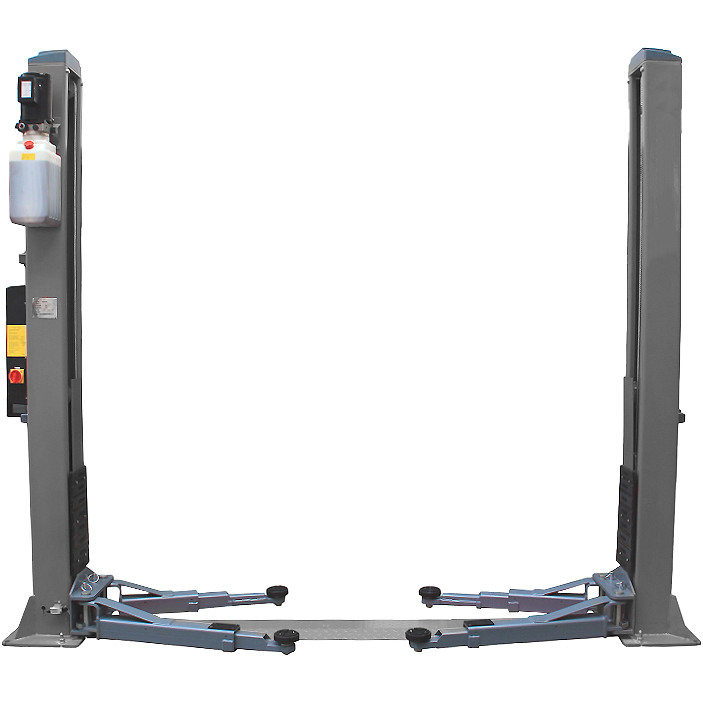

Launch TLT240SB(A) Standard 4Tonne Floorplate Two Post Lift (4,000kg capacity).
Designed and based on the international standard, meeting the demand of the garage and workshop.
The cable and oil pipe are fully concealed, with decent and elegant appearance.
Top limit switch, effectively protecting the vehicle from overhead collision.
Dual hydraulic cylinders drive, stable lifting and lowering.
Electromagnetic full-scope safety lock.
Lowering electrically, safe and simple in operation.
Adopt two steel cables for equalization, force two carriages to move synchronously, and effectively prevent the vehicle from tilting.
Lowest height of lifting pad is 110mm, good for repairing low chassis or low profile car.
Launch TLT240SB(A) Standard 4T Floorplate Two Post Lift 4T Specification
Capacity  4 TON (9000 lbs /4,000kg)
Lifting height  1950 mm (76.8inch)
Lifting time  50 Sec
Lowering time  40 Sec
Motor power  2.2 kw
Passing width  2486 mm (97.9 inch)
Overall width  3370 mm (132.7 inch)
Overall height  2860 mm (112.6 inch)
Launch TLT240SB(A) Parameter:
Working noise: ≤80dB(A)
Power unit:
Working pressure: 16MPa (TLT235SBA)
18MPa (TLT240SBA)
Motor:
Three phase: 230V/60Hz 2.2kw; 380V/50Hz 2.2kw
Single phase: 110V/60Hz 2.2kw; 220V/60Hz 2.2kw
220V/50Hz 2.2kw
Delivered and installed with 2 years warranty by Liftmaster
