bendpak 12apx 192 extended height

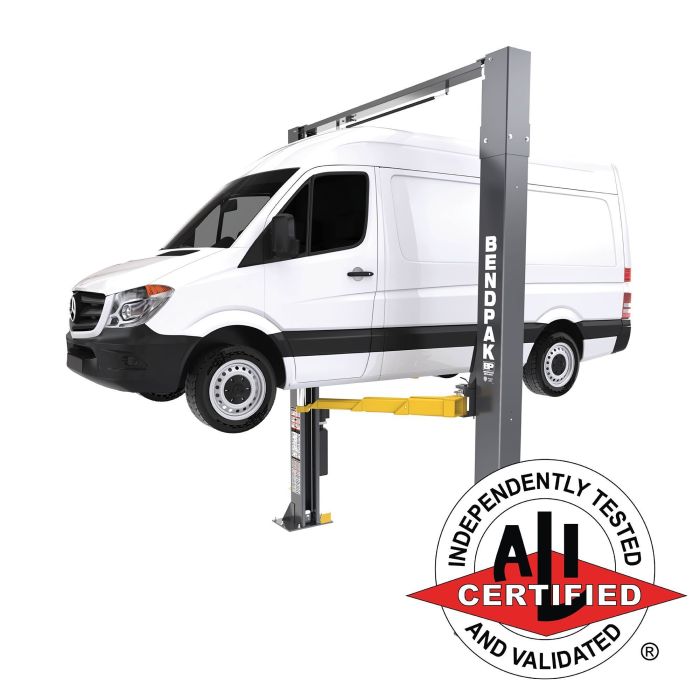

Bendpak 12APX-192  Two Post Lift

/ 2 post baseless lifts, 2 post lift for cars and vans, Bendpak 2 post lifts / By

Bendpak 12apx 192 extended height 2 Post Lift



• 5,443Kg lifting capacity suitable for cars, vans and heavier EVs
• Clearfloor design for unobstructed access beneath the vehicle
• Bi-Metric™ swing arms allowing symmetric or asymmetric lifting
• Low-profile lifting arms for vehicles with reduced ground clearance
• Triple telescoping arm design for extended reach and flexible lifting
points
• Automatic swing arm restraint system preventing arm movement
during service
• Automatic safety lock system with single-point release
• Extended high-rise design 4,904mm overall height, providing
additional working clearance
• Safely lifts heavier modern vehicles and EVs
• More overhead space for taller vehicles and technicians
• Flexible lifting configurations for a wide range of vehicles
• Enhanced safety during lifting and service
• Improved technician comfort and working access

bendpak 12apx 192 extended height

C – Max. Lifting Height w/ Pad up                     82.5 in. / 2,095 mm
D – Min. Height w/ Pad                                        4 in. / 101.2 mm
E – Overall Height                                                  193 in. / 4,904 mm
F – Overall Width                                                    156 in. / 3,959 mm
G – Width, Outside Posts                                       143 in. / 3,238 mm
H – Width, Inside Posts                                          120 in. / 3,047 mm
I – Width, Drive-Thru                                             103 in. / 2,616 mm
J – Floor to Top Switch                                   186.50 in. / 4,738.5 mm
K – Front Arm Reach (min)                  55.25 in. / 1,404.2 mm (max)
L – Rear Arm Reach                                     60 in. / 1,524.4 mm (max)
Max. load per Lift Arm                                           3,000 lbs. / 1,361 kg
Pad Adapters Total Height                                       7.50 in. / 188 mm
Time to Full Rise                                                       ≈ 45 seconds
Motor                                                                         240v or 415V
PRE ORDER FOR JUNE ’26 INSTALLATION
