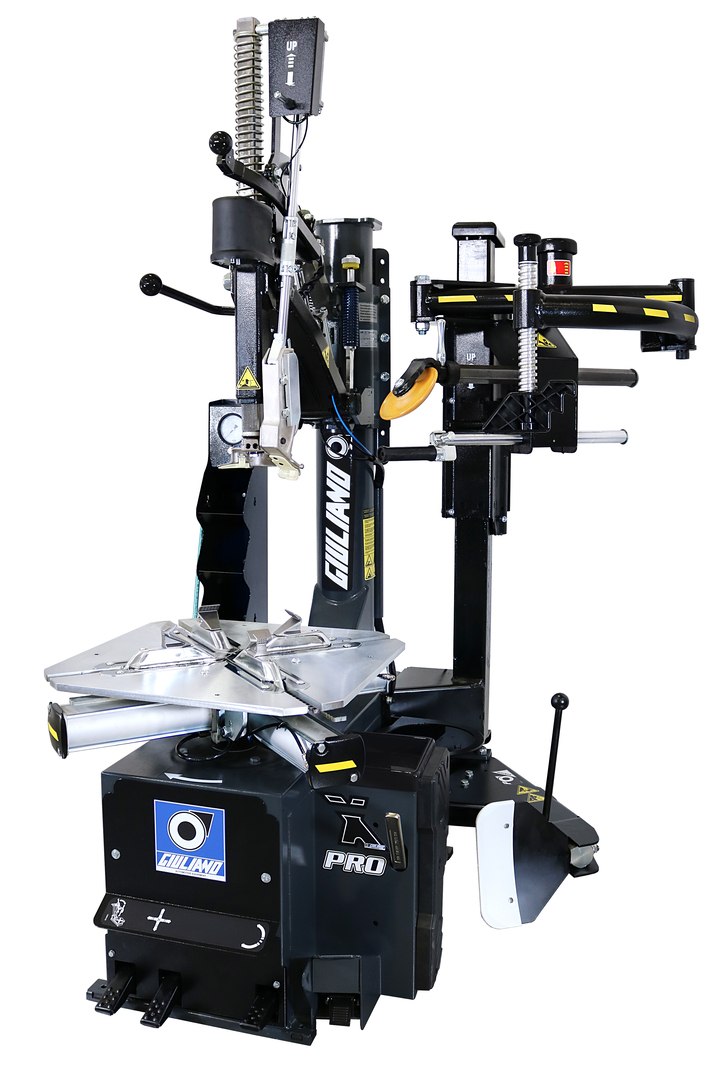

Giuliano SX229 /QX Leverless Operation Par-Move Tyre Changer. A patented feature is the ‘Lever No Lever’ system, which offers the unique ability to switch between traditional (demount head and lever) operation and leverless. With Twin Assist Arms, 10”- 29” clamping. Dual Force Bead Breaker, (available as Tabletop or Centre Post 30” clamping). Par-Move uses a fixed, cylindrical main column, eliminating altogether the pivot pin and tilting mechanism used in traditional tilt-back machines – and this is the first major improvement in rigidity and strength. Then, the automatic operation and performance of a tilt-back model is provided via the ‘Par-Move’ parallelogram design feature. This patented design allows the operator to position the demount head (optional leverless or fitted with a traditional demount head) directly against the rim and, at the press of a button, the ‘head’ or removal finger moves up and away approximately 2mm, providing clearance from the rim. Extensive structural tests have proven that the Par-Move design is stronger and safer than any traditional tilt or swing arm machine. Due to the fixed column structure, the SX229 can be positioned up against the wall, eliminating the need for any room behind the machine. The DualForce™ bead breaker gives the user the option to use a rocker-pedal located in the traditional position when using the bead breaker, or a thumb button, giving full control of the shovel. The ‘toggle’ movement on both pedal and thumb control can be stopped and started at any position, unlike the traditional piston-type bead breaker which is forced to travel fully in and out. Fitted with Extractable pedal box.
Max. tyre diameter 1100 mm (43″).
Max. tyre width 415 mm (16″).
Bead breaker force 30800 N.
Operating pressure 10 bar (145 psi).
240v. 0.8kw motor. Speed 7/14 rpm.
Air Inflation Pressure 3,5 bar (50psi).
Power supply 220V /1ph (Available special order400V / 3ph).
External clamping range 10”–27”.
Internal clamping range 12”–29” (30” centre post model)
Max. tyre diameter 1100 mm (43”)
Max. tyre width 415 mm (16”).
£7,790.00+vat Optional Lease finance example 1+59 months at £180.58+vat
