Giuliano S562 Mobile HGV Tyre Changer

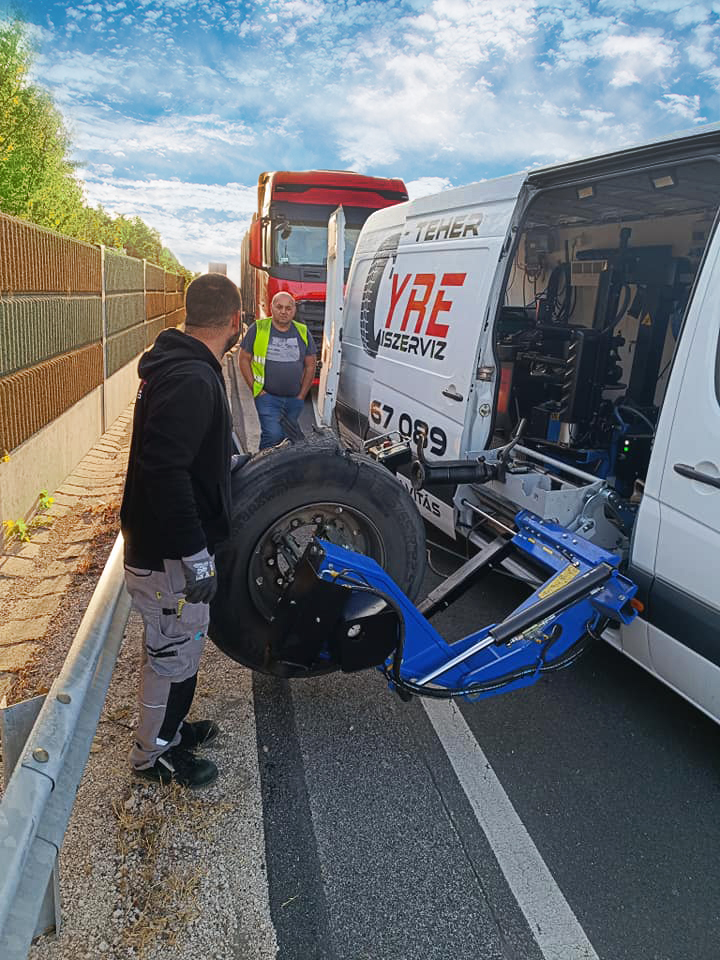

The Giuliano S562 is a heavy-duty, mobile tire changer manufactured by Giuliano Automotive, designed specifically for roadside and mobile servicing of truck, bus, and commercial vehicle tires. Aimed at maximizing operator safety, reducing operational steps, and expediting setup speeds during roadside assistance.

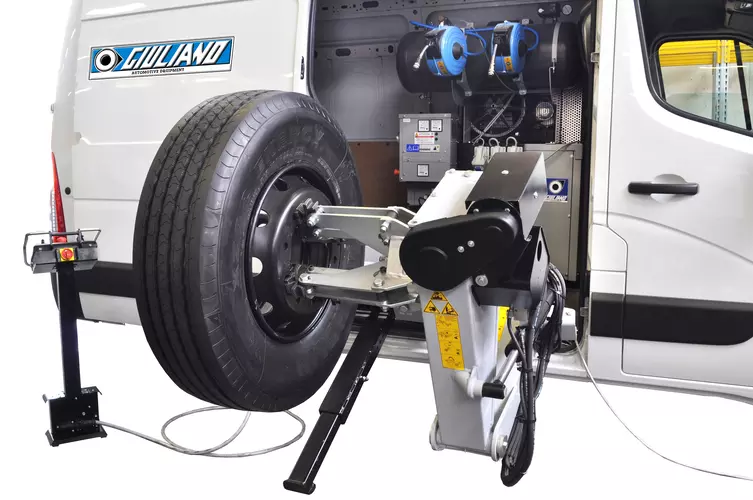

The S562 tyre changer is designed for mobile tyre service for trucks, buses and road transport vehicles (tube and tubeless tyres). This fully hydraulic machine fits into most common commercial vans through either the side or rear door and is equipped with adjustable support-foot for firm positioning in any situation.
Minimum size of van’s door required for complete assembly’s installation: 1100 mm x 1750 mm. The truly space-saving tyre changer for mobile tyre service, designed for a fast and efficient workflow.
Equipped with a new  power unit (generator+compressor), as an ideal mobile workstation that allows you to work on the road with the same features and performance as in your tyre service workshop.Features

• Hydraulic movement of clamping chuck holding arm (up-down).
• Hydraulic travel movement of operating arm carriage (left-right).
• Operating arm manual tilting and travelling on carriage.
• Innovative roller & finger double tool allows to handle tyres either with or without a bead guide lever.
• Electro-hydraulic motor for clamping chuck rotation.
• Wheel clamping by fully hydraulic operated jaws.
• Machine installation from the side or back door of the van.
• Clamping chuck holding arm tilts outside the van-door & folds back inside the van after use.
• All motions controlled by joysticks and pedal box.
• Emergency safety button on control console and generator, for stopping all functions.
• Rim center hole clamping range ø 80 – 700 mm.
• Clamping chuck minimum height from ground 330 mm (according to van’s floor height).
• Supplied with generator  compressor and recoil hose reel
• S562 tyre changer is designed for mobile tyre service for trucks, buses and road transport vehicles (tube and tubeless tyres). This fully hydraulic machine fits into most common commercial vans through either the side or rear door and is equipped with adjustable support-foot for firm positioning in any situation.
  Mobile tyre changer with electro-hydraulic clamping chuck is equipped with multi-stage clamping jaws with plastic protections for alloy wheels allows clamping of rims with a centre hole even of only Ø 80 mm and a total diameter of up to 27″. Equipped with ergonomic wheeled control-console with simple commands layout, suitable for remote control installation (optional). Nylon bead breaker roller for alloy rims. Self-lubricating bushes in all articulated joints. Electro-hydraulic unit with easy inspection area for maintenance.
  Min. size of van’s door required for complete assembly’s installation: 1100 mm x 1750 mm. The truly space-saving tyre changer for mobile tyre service, designed for a fast and efficient workflow.
  Equipped with a new optional power unit (generator+compressor), as an ideal mobile workstation that allows you to work on the road with the same features and performance as in your tyre service workshop.POWER UNIT (GENERATOR + COMPRESSOR): Dual-cylinder pump for air compressor. Compressed air tank. Hose coilers in easily accessible position. Electric sockets 1Ph and 3Ph with thermal circuit breaker. Fuel tank for diesel engine. Battery for diesel engine. Lombardini /Kohler diesel engine.Features
  • Hydraulic movement of clamping chuck holding arm (up-down).
  • Hydraulic travel movement of operating arm carriage (left-right).
  • Operating arm manual tilting and travelling on carriage.
  • Innovative roller & finger double tool allows to handle tyres either with or without a bead guide lever.
  • Electro-hydraulic motor for clamping chuck rotation.
  • Wheel clamping by fully hydraulic operated jaws.
  • Machine installation from the side or back door of the van.
  • Clamping chuck holding arm tilts outside the van-door & folds back inside the van after use.
  • All motions controlled by joysticks and pedal box.
  • Emergency safety button on control console and generator, for stopping all functions.
  • Rim center hole clamping range ø 80 – 700 mm.
  • Clamping chuck minimum height from ground 330 mm (according to van’s floor height).
  • Available in version without generator and compressor (optional)
  • Generator:
    • Power 10,6 kW;
    • Supply Diesel;
    • Voltage 230 V 1ph / 400 V 3ph;
    • Cooling H₂O;
  • Compressor:
    • Capacity 100 lt;
    • Air flow 650 lt/min;
    • Voltage 230V 1ph/ 400V 3ph;
    • Also equipped with 2 air feeding plugs and hoses, complete with coilers mt. 10, plus one extra electric plug for connecting 220V-1ph outlet.
  • Designed, built and engineered in Italy.
